S/FTP Cat.7 Solid Lan cable

S/FTP Cat.7 Solid Lan cable

Details :

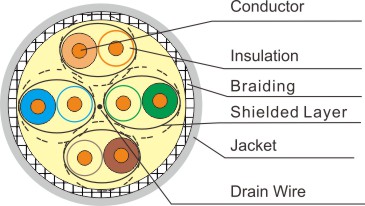

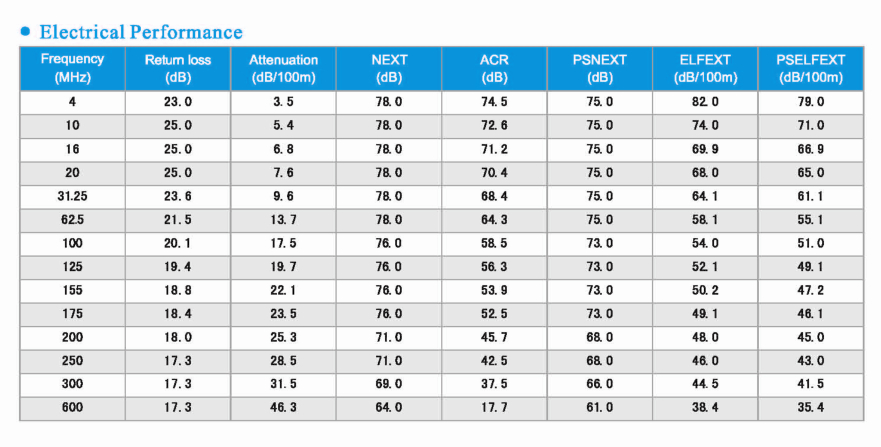

Standard IEC/ISO 61156-5 ISO/IEC 11801 Application Suitable for structured premises cabling For transmission of digital and analogue voice and data signals. Especially suitable for all Class F applications. ISDN,Ethernet 10Base-T,Fast Ethernet 100Base-T,Gigabit Ethernet 1000 Base-T,10G Base-T(IEEE802.3) Token Ring4/16M bit/s,TP-PMD/TP/DDI 125 Mbit/s,ATM 155M Bit/s(IEEE802.5) Electrical Characteristics Impedance:1-100MHz 100±15(ohms) 100-250MHz 100±22(ohms) 250-600MHz 100±25(ohms) Max.Conductor DC Resistance 20℃:8.4(ohms/100m) Resistance unbalance(%):max 2.5 Pair-to-Ground Capacitance Unbalance:330(pF/100m) Transfer Impendance:Max 10 mohms/m@100MHz Coupling Attenuation:Min 80 dB Installation temperature:0~50℃ Operation temperature:-20∽60℃ Conductor: Conductor: bare solid copper Conductor diameter: 23AWG Pair insulation: PE(Skin-Foam-Skin) Individual shield material: aluminum foil Outer cable diameter: 8.3 ± 0.3mm Pair identification: pair 1= blue/white pair 2= orange/white pair 3= green/white pair 4= brown/white Outer jacket: PVC/CMX/CM/CMR/LSZH/LDPE Overall shield material: tinned copper braid Jacket color: grey RAL 9002 or as per request
