UTP Cat.6 Solid Dual Lan Cable

UTP Cat.6 Solid Dual Lan Cable UTP Cat.6 Solid Dual Lan Cable UTP Cat.6 Solid Dual Lan Cable
Details :

Application

Exceeds ANSI/TIA-568-C.2 Cat.6 and ISO 11801 2nd Edition Class E  channel standards.
Exceeds requirements of ANSI/TIA-568.C.2 and IEC 61156-5 Cat.6 component standards.
Meets IEEE802.3af and IEEE 802.3 at for PoE applications.
Third party tested to comply with ANSI/TIA/EIA-568-C.2
Descending length cable markings enable easy identification of remaining cable which reduces installation time and cable scrap.
Color Availability:Additional cable colors available.

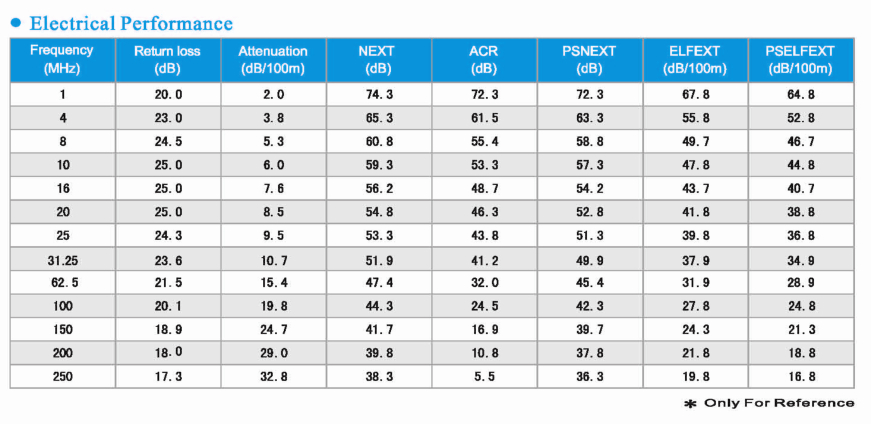

Electrical Characteristics

Impedance:1-250MHz  100±15(ohms)
Rated Temperature:75℃
DC Resistance unbalance(%):max 2.5
DC Resistance 20℃:8.4(ohms/100m)
Pair-to-Ground Capacitance Unbalance:330(pF/100m)
Insulation Resistance: >5000MΩ*Km
Dielectric strength:DC 2500V 2S

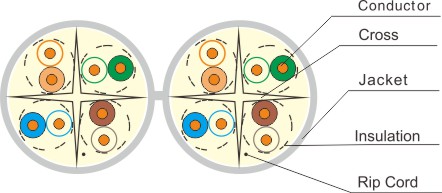

Conductor:

Conductor: bare solid copper
Conductor diameter: 23AWG
Pair insulation: HDPE
Outer cable diameter:(6.6+6.6)± 0.2mm
Pair identification: pair 1= white-blue/blue pair 2= white-orange/orange  pair 3= white-green/green  pair 4= white-brown/brown
Outer jacket: PVC/CMX/CM/CMR/LSZH/LDPE
Jacket color: grey RAL 9002 or as per request
