Single Core Tight Wrapped Indoor Optical Cable(GJFJH 1xn)

Introduction

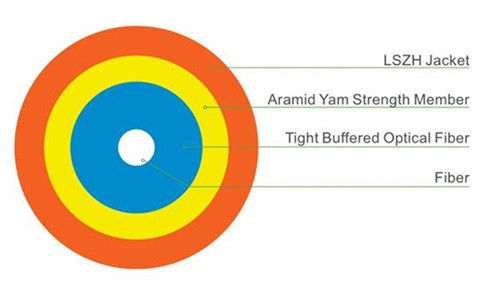

One 900μm Buffered Fibers are surrounded by aramid yarn strength members and a flame-retardant jacket.

G652D fiber information

Mode field diameter(1310nm):9.2μm±0.4μm
Mode field diameter((1550nm):10.4μm±0.8μm
Cladding diameter: 125μm±1.0μm
Coating diameter: 245μm±7μm
Cut off wavelength of cabled fiber:≤1260μm
Attenuation at 1310nm:≤0.35dB/km
Attenuation at 1550nm:≤0.21dB/km
Bending loss at 1550nm(100 turns,30mm radius):≤0.05dB
Dispersion in the range 1288 to 1339nm:≤3.5ps/(nm.km)
Dispersion at 1550nm:≤18ps/(nm.km)
Dispersion slope at zero dispersion wavelength:≤0.092ps/(nm2.km)

Order Information
