FTTH Drop Cable(GJXFH-2)

FTTH Drop Cable(GJXFH-2) FTTH Drop Cable(GJXFH-2) FTTH Drop Cable(GJXFH-2) FTTH Drop Cable(GJXFH-2)
Details :


FTTH Drop Cable(GJXFH-2)

Introduction

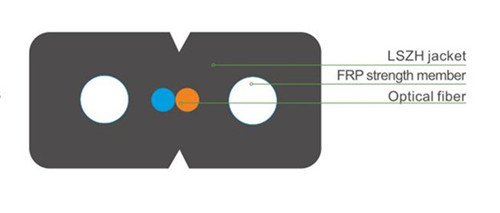

This flat drop cable,which consists of 1,2 or 4 color coded optical fibers,
offers an ideal solution for the smaller fiber counts that are needed in the
final sections of an optical network.Two parallel FRP strength members protect
the optical fibers.The cable is completed with a LSOH jacket.

G657 fiber information

Mode field diameter(1310nm):8.6μm±0.5μm
Cladding diameter: 125μm±0.7μm
Coating diameter: 245μm±7μm
Cut off wavelength of cabled fiber:≤1260μm
Attenuation at 1310nm:≤0.35dB/km
Attenuation at 1550nm:≤0.21dB/km
Bending loss at 1550nm(100 turns,30mm radius):≤0.05dB
Dispersion in the range 1288 to 1339nm:≤3.5ps/(nm.km)
Dispersion at 1550nm:≤18ps/(nm.km)
Dispersion slope at zero dispersion wavelength:≤0.092ps/(nm2.km)

Order Information

Part No. Description Specification
JBOF11-S Single Mode 2-12 cores
JBOF11-M Multimode 2-12 cores
