SE Wall Cabinet
Standard:
Comply with ANSI/EIA RS-310-D,IEC60297-2,DIN41494
Part1,DIN41494,Part7
Material:
SPCC Cold Rolled Steel;
Thickness:Mounting profile:1.2/1.5mm,others:1.0mm
Color:
JBSE■■■■■■0■■:RAL7035
JBSE■■■■■■1■■:RAL9004
Loading Capacity:
Static loading:60KGS
Feature:
Flat packing and patent frame,packing time is less than 5 minutes,around 1/3～1/4 assembled original volume when flat pack.
Cable entry on both of top cover and bottom panel.
Steel front door,opening direction of door can be changed,turning angle of front door is over 180 degrees.
Different optional style of doors
Wall mounted panel,convenience for installation,locked from inside with screw,avoiding to be stolen or accidentally dropped.
Flat side panel,easy installation.
Installation depth of mounting profile can be available changed.
19” standard installation

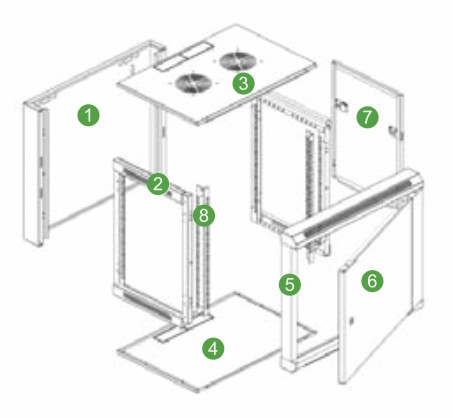

Main Part:
| S/N |
Specification |
Qty |
Material |
Surface Finish |
Remark |
| 1 |
Back frame |
1 |
SPCC t1.0 |
Powder coated |
﹣﹣﹣﹣ |
| 2 |
Side panel |
2 |
SPCC t1.0 |
Powder coated |
﹣﹣﹣﹣ |
| 3 |
Top cover |
1 |
SPCC t1.0 |
Powder coated |
﹣﹣﹣﹣ |
| 4 |
Bottom |
1 |
SPCC t1.0 |
Powder coated |
﹣﹣﹣﹣ |
| 5 |
Front frame |
1 |
SPCC t1.0 |
Powder coated |
See next page |
| 6 |
Front door |
1 |
5MM toughed glass door/SPCC t1.2 |
Powder coated |
Available on request |
| 7 |
Side panel |
2 |
SPCC t1.0 |
Powder coated |
﹣﹣﹣﹣ |
| 8 |
19" rails |
2 |
SPCC t1.2/1.5 |
Powder coated |
﹤15U Thinkness:1.2mm ﹥=15U Thinkness:1.5mm |
| A |
M6 screw&nuts |
10 |
Steel |
Color zinc |
20pcs for over 12U |
| B |
Trox tooling |
1 |
Steel |
Black |
﹣﹣﹣﹣ |
Definition of Code

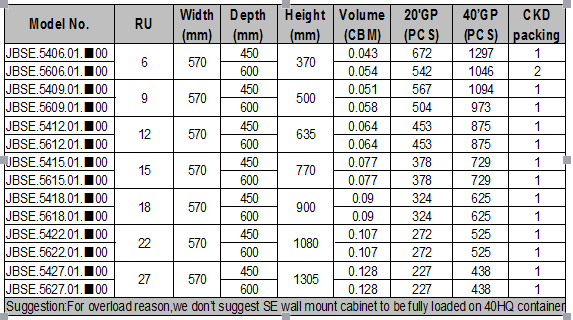

Order Information
