EW Wall Cabinet

Standard:
Comply with ANSI/EIA RS-310-D,IEC60297-2,DIN41494
Part1,DIN41494,Part7

Material:
SPCC Cold Rolled Steel;
Thickness:Mounting profile:2.0mm,others:1.0mm

Color:
JBEW■■■■0■■:RAL7035
JBEW■■■■1■■:RAL7021

Loading Capacity:
Static loading:30KGS
Protection category:lp20

Finish
Pretreated steel coated with textured,polyester powder paint

Feature:
Knocked down and smaller packing,easy to transport and carry
Front and rear frame of specially-made structure,better stability
Using 13 screw set to assembly the whole cabinet,it spends only 10 mins by one people to operate.
It has a pilot pin to help close the front door to avoid mismatch,and the front door can be changed to another way to open
The cable can be entered from top,bottom,back of the cabinet,suitable to every situation.The incoming cable hole patented,it can be adjusted,and has the round edge to avoid the cutting to the cable.
Side panel can be opening in rotated way or disassembling,having a space enough to wiring,the side panel can be locked safely from inside without the locker and key.
Maximum bearing capacity:30KG

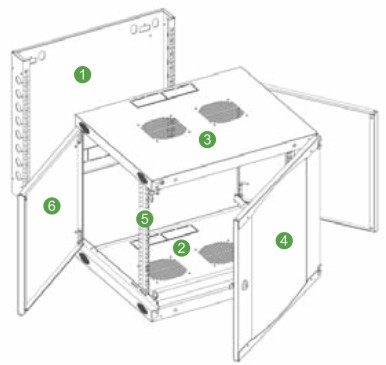

Main Part:
