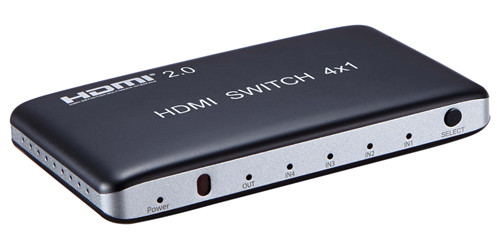

HDMI V2.0 SWITCH 4x1(Plastic)

HDMI V2.0 SWITCH 4x1(Plastic) HDMI V2.0 SWITCH 4x1(Plastic)
Details :


HDMI V2.0 SWITCH 4x1(Plastic)

The 4x1 HDMI switch allows 4 HDMI ports to be switched to a single display terminal via remote control or buttons on unit.
The switcher can be placed at the end of a long HDMI cable to regenerate the HDMI signal.
The HDMI switcher can support all hd formats including 720p, 1080i, 1080p, 4K/30Hz,4K/60Hz multichannel audio.



Features:

1. Support HDMI 2.0b
2. Support 3D
3. Support highest video resolution 4K/60Hz
4. Support 6Gbps data rate for tmds clock up to 600MHz
5. Support 24/30/36 bit deep color
6. Supports auto switch of HDMI input (priority of the last port in 4)
7. Support standard AWG26 cable, input up to 8 metres ,output up to 8 metres (4K/30Hz or lower)
8. Support standard HDMI 2.0 cable, input up to 3 metres ,output up to 5 metres(4K/60Hz)
9. Support single and high definition display for multiple sources, such as DVD Players
    and Satellite Receivers, HD players, PS4, Set top Boxes.
10. Need DC5V/1A power supply.
