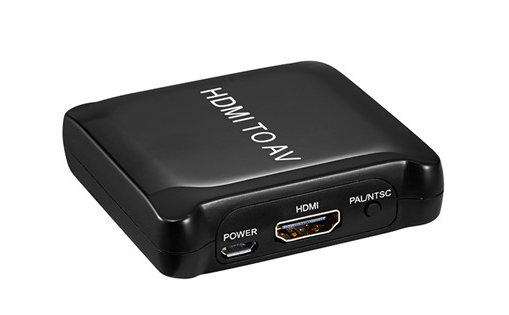

Plastic HDMI to AV Converter

This plastic HDMI to AV converter can convert HDMI digital signal to AV (CVBS) composite video signal and FL/FR stereo audio signal.
It can convert high quality HDMI video signal to normal CVBS signals (standard-definition 480i, 576i) which can be received by TV,
VHS VCR players, DVD recorder. Also it can support NTSC and PAL two standard formats. Tips: It cannot support DTS and RAW codes.

Features:

1．No need to install drivers, plug and play
2．By pressing “PAL/NTSC” switch on the converter, you can easily change the format between NTSC and PAL
3．Support full format output (NTSC, PAL)

Specification:

1．HDMI input format: 480i/60Hz, 480p/60Hz, 576i/60Hz, 576p/60Hz, 720p50/60Hz, 1080i50/60Hz, 1080p50/60Hz
2．AV output: CVBS(1.0Vpp)、S-Video(Y:1.0Vpp、C:0.3Vpp)
3．Output video format ：PAL/NTSC
4．Output video signal impedance: 75 Ohm
5．Max working current: 320mA
6．Need DC 5V/1A power supply
7．Demension (L x W x H): 70*65.8*20.2mm
8．Net weight: 40g
