8x8 HDMI Matrix

HDBT extender up to 70m
4Kx2K
POE
RS232
bi-directional IR control

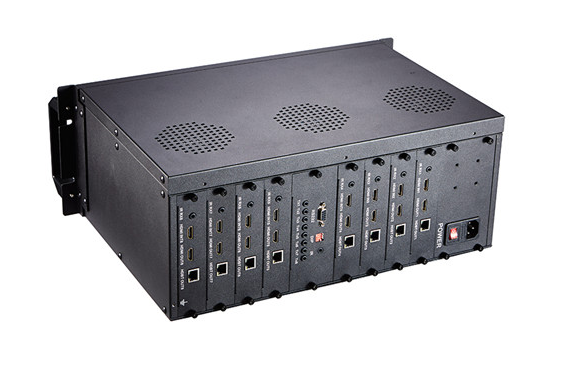

The 8x8 HDMI matrix can connect 8 HDMI signal sources with the 8 displayers at the same time.
It can easily and freely split or switch 8 hdmi signals on 8 displayers or projectors which compatible with hdmi signal.
In addition, when connect with one HDMI cable, it can amplify HDMI signal. The highest resolution is up to 4Kx2k /30z

More ,This matrix support HD BaseT extension function, and it can connects 8 RX by Cat5E/6  , the max distance is 70M

Our devices offer solutions for noise, space and security concerns, data center control,
information distribution, conference room presentation, school and corporate training environments.

Features:

1.Eight HDMI signals can be independently split or switched to eight displayers
2.Support resolution up to 4Kx2K/30Hz
3.Support HDBT extension
  1)When input 1080P, the max distance is 70M
  2)When input 4Kx2K, the max distance is 40M
4.Support HDMI 1.4b and HDCP1.4
5.Support Deep color
6.Support POE power supply
7.Support CEC (only HDBaseT port)
8.Support 24/30/50/60Hz refresh rate
9.Support audio format DTS-HD/Dolby-trueHD/LPCM7.1/DTS/DOLBY-AC3/DSD
10.Support signal timing reset
11.Support AWG26 HDMI standard cable, input up to 10 meters, output up to 10 meters
12.Support bi-directional IR extension, support IR remote control for matrix switching, support local infrared extension for matrix control
13.Support RS232 control
14.Support DIP switch for EDID Management
15.Power adapter: AC 110~240V
