All Dielectric Self-supporting Aerial Cable(ASS)

Introduction

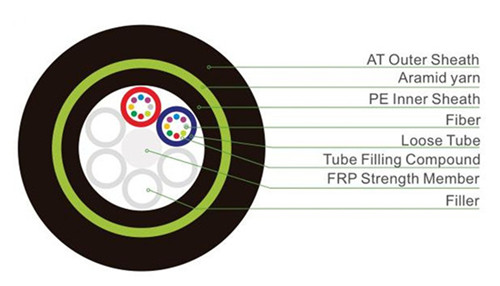

The fibers are placed in a loose tube made of PBT.The tubes are filled with a water-resistant filling compound.
elements(tubes and filler rods)laid up around no-metallic central strength member,
filling compound filled in the apertures of the cable core,PE inner sheath,
aramid yarn as the supporting member and PE(or ATPE)outer sheath.



G652D fiber information

Mode field diameter(1310nm):9.2μm±0.4μm
Mode field diameter((1550nm):10.4μm±0.8μm
Cladding diameter: 125μm±1.0μm
Coating diameter: 245μm±7μm
Cut off wavelength of cabled fiber:≤1260μm
Attenuation at 1310nm:≤0.35dB/km
Attenuation at 1550nm:≤0.21dB/km
Bending loss at 1550nm(100 turns,30mm radius):≤0.05dB
Dispersion in the range 1288 to 1339nm:≤3.5ps/(nm.km)
Dispersion at 1550nm:≤18ps/(nm.km)
Dispersion slope at zero dispersion wavelength:≤0.092ps/(nm2.km)

Order Information
