RG11 Coaxial Cable

RG11 Coaxial Cable RG11 Coaxial Cable
Details :


Application:

Used for wide band,the data transmission and the signal of computer

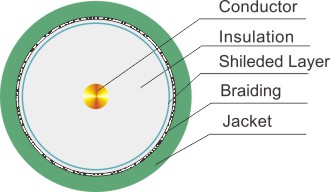

Product Description:

Inner conductor: 1/1.63mm BC or CCS
Insulation:7.11mm Foamed Polyethylene
Shield 1:Al Foil longitudinal,bonded
Shield 2:BC or AL wire Braid
Jacket:10.16mm PVC or PE
Flammability grade:CMX,CM
Operating temperature:-25℃~70℃ or -40℃~70℃
Reference Standard:MIL-C-17

Electrical Characteristics:


Impedance: 75 Ohm± 3 Ohm
Capacitance:52± 3pF/m
Max Attenuation:20℃

Order Information:

Part No. Cable Type Inner conductor(mm) Insulation(mm) Braid Jacket(mm)
AL-Foil No./mm
JBCO13 RG11 1.63 7.11FPE Yes 32x0.12 10.16
JBCO14 1.63 7.11FPE Yes 48x0.12 10.16
JBCO15 1.63 7.11FPE Yes 64x0.12 10.16
JBCO16 1.63 7.11FPE Yes 96x0.12 10.16
