Application:
Used for wide band,the data transmission and the signal of computer

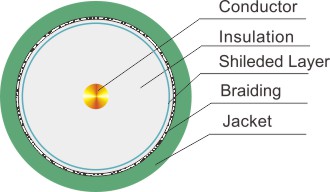

Product Description:
Inner conductor: 1/1.02mm BC or CCS
Insulation:4.57mm Foamed Polyethylene
Shield 1:Al Foil longitudinal
Shield 2:BC or AL wire Braid
Jacket:6.8mm PVC or PE
Flammability grade:CMX,CM
Operating temperature:-25℃~70℃ or -40℃~70℃
Reference Standard:MIL-C-17
Electrical Characteristics:
Impedance: 75 Ohm± 3 Ohm
Capacitance:52± 3pF/m
Max Attenuation:20℃
Order Information:
| Part No. |
Cable Type |
Inner conductor(mm) |
Insulation(mm) |
Braid |
Jacket(mm) |
| AL-Foil |
No./mm |
| JBCO01 |
RG6 |
1.02 |
4.57FPE |
Yes |
16x2x0.12 |
6.8 |
| JBCO02 |
1.02 |
4.57FPE |
Yes |
16x3x0.12 |
6.8 |
| JBCO03 |
1.02 |
4.57FPE |
Yes |
16x4x0.12 |
6.8 |
| JBCO04 |
1.02 |
4.57FPE |
Yes |
16x6x0.12 |
6.8 |
