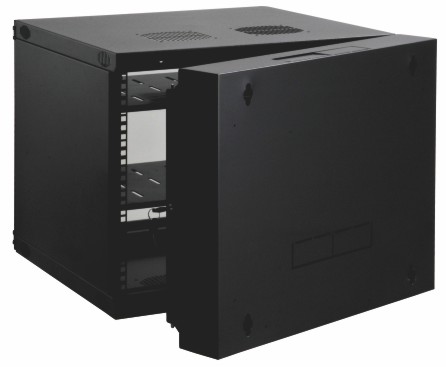

VA Wall Cabinet

Standard:
Comply with ANSI/EIA RS-310-D,IEC60297-2,DIN41494
Part1,DIN41494,Part7

Material:
SPCC Cold Rolled Steel;
Thickness:Mounting profile:2.0mm,others:1.0mm

Color:
JBVA■■■■0■■:RAL7035
JBVA■■■■1■■:RAL7021

Loading Capacity:
Static loading:30KGS

Protection category:lp20

Finish
Pretreated steel coated with textured,polyester powder paint

Feature:
Disassembled and smaller packing,easy to transport and carry
Special design front and back frames are with good stability.
16 screws are needed to assemble the whole enclosure.It will take only 10 minutes to assemble the enclosure by one people.
Front door is with corrective structure to avoid door dropping.
Opening direction could be changed easily.
Cable entries are available on top,bottom and back of enclosure,suitable for different places.
The patented cable entries are adjustable and with the design to prevent wire from scratching.
Opening direction of enclosures can be changed quickly.Automatic locking ensures safety and reliability.
Maximum loading capacity:30KG

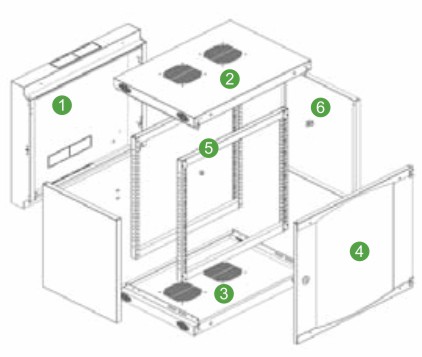

Main Part:
