RG6 Messenger Coaxial Cable

RG6 Messenger Coaxial Cable RG6 Messenger Coaxial Cable
Details :


Application:

Used for wide band,the data transmission and the signal of computer

Product Description:

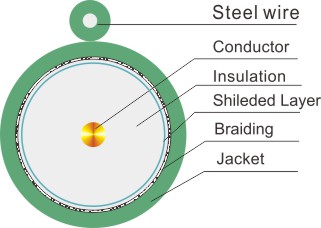

Inner conductor: 1/1.02mm BC or CCS
Insulation:4.57mm Foamed Polyethylene
Shield 1:Al Foil longitudinal
Shield 2:BC or AL wire Braid
Messenger:1.33mm steel wire
Jacket:6.8mm+2.8mm PVC or PE
Flammability grade:CMX,CM
Operating temperature:-25℃~70℃ or -40℃~70℃
Reference Standard:MIL-C-17



Electrical Characteristics:

Impedance: 75 Ohm± 3 Ohm
Capacitance:52± 3pF/m
Max Attenuation:20℃



Order Information

Part No. Cable Type Inner conductor(mm) Insulation(mm) Braid Jacket(mm)
AL-Foil No./mm
JBCO05 RG6 Messenger Coaxial Cable 1.02 4.57FPE Yes 16x2x0.12 6.8+2.8
JBCO06 1.02 4.57FPE Yes 16x3x0.12 6.8+2.8
JBCO07 1.02 4.57FPE Yes 16x4x0.12 6.8+2.8
JBCO08 1.02 4.57FPE Yes 16x6x0.12 6.8+2.8
